Home How to renovate and sustainably protect diamond plates and safety gratings in an industrial environment ?
This solution explains how to renovate and durably protect checkered plates against corrosion, wear, traffic, chemical attacks, etc. in an industrial environment, whether indoors or outdoors.
Whether new or already rusted, the lifespan of tread plates made of steel, aluminum, and galvanized steel can easily be extended thanks to our high-performance paints.
Products presented
RD-Eco Powerclean
Powerful biodegradable alkaline concentrate composed of anti-flash rust additives for cleaning...
Powerful biodegradable alkaline concentrate composed of anti-flash rust additives for cleaning...
RD-Elastometal
High performance elastomeric coating combining superior anti-corrosion and waterproofing...
High performance elastomeric coating combining superior anti-corrosion and waterproofing...
RD-Edeck Slurry
Thick applied multi-purpose single component coating for the protection of concrete slabs and...
Thick applied multi-purpose single component coating for the protection of concrete slabs and...
RD-Monoguard SG
The Benchmark in High-Performance Anti-Rust Paint for C4 and C5 Environments.
The Benchmark in High-Performance Anti-Rust Paint for C4 and C5 Environments.
RD-Monofloor PU
Fast drying floor paint for workshops, technical rooms and balconies.
Fast drying floor paint for workshops, technical rooms and balconies.
RD-Hydrograff HP Satin
Extremely resistant satin gloss paint, specifically designed to provide long-lasting...
Extremely resistant satin gloss paint, specifically designed to provide long-lasting...
RD-Hydrograff HP Glossy
Extremely resistant high-gloss paint, specifically designed to provide long-lasting...
Extremely resistant high-gloss paint, specifically designed to provide long-lasting...
The problem
Because of the environment that can be sometimes very aggressive, rust can accumulate and begin to create deformations in the metal. Over time, the action of rust will weaken the structure to the point where it may need to be replaced.
This process will be even quicker if the diamond plate is located outdoors or subject to an aggressive industrial environment, such as fumes or vapors.
Checkered plates also tend to deform to the point where rainwater or other substances can accumulate and stagnate for some time, further accelerating deterioration.
Therefore, our solution combines several performance criteria such as:
• Corrosion resistance
• Resistance to chemical splashes
• Resistance to sometimes aggressive fumes
• Traffic resistance
• Resistance to stagnant water
The solution
RD Coatings offers various systems depending on the condition of the sheets, their composition, the environment, and the desired performance.
These are generally paint systems that can be applied quickly and easily, in just two coats!
Our water-based products are non-flammable, virtually odorless, and contain very few volatile organic compounds (VOCs)! These properties make them highly appreciated in hazardous or busy environments, as well as in industries where hygiene measures are important.
Our solutions described in the "Systems" tab make use of the following products:
RD-Elastometal : A high-performance single-component elastomeric coating combining superior corrosion protection and waterproofing properties.
- Ideal for surfaces already rusted and prone to water stagnation.
RD-Monoguard : A highly powerful single-component anticorrosion coating with exceptional adhesion properties.
- Ideal for new sheets of steel, galvanized steel, aluminum, and stainless steel.
RD-Edeck Slurry : A single-component intermediate coating creating a thick, abrasion-resistant, flexible, and non-slip wear layer.
- Ideal for platforms with heavy traffic.
RD-Hydrograff HP : A two-component polyurethane finish coating highly resistant to wear, abrasion, chemical attacks, and UV radiation.
- It's the optimal finish in industrial environments.
RD-Monofloor PU : A single-component polyurethane finish coating with fast drying and UV resistance.
- Ideal finish for sheets with low traffic and located in non-aggressive environments.
System(s)
1/ Rusted plates located in industrial environment
| Product | Consumption | Dry film | |||
| 1st layer | RD-Elastometal | 0,40 kg/m² 130 s/f-g | 175 µ 7 mils | ||
| 2nd layer | RD-Elastometal | 0,40 kg/m² 130 s/f-g | 175 µ 7 mils | ||
| 3rd layer | RD-Hydrograff HP Glossy | 0,10 l/m² 390 s/f-g | 50 µ 2 mils | ||
A second RD-Hydrograff HP coat is recommended if the surface is subject to very heavy traffic.
Choose a color that is not prone to getting dirty or a safety color from our color palette !
2/ Rusted plates located in low traffic and non industrial environment
| Product | Consumption | Dry film | |||
| 1st layer | RD-Elastometal | 0,40 kg/m² 130 s/f-g | 175 µ 7 mils | ||
| 2nd layer | RD-Elastometal | 0,40 kg/m² 130 s/f-g | 175 µ 7 mils | ||
| 3rd layer | RD-Monofloor PU | 0,20 l/m² 290 s/f-g | 60 µ 2.4 mils | ||
3/ Rusted plates located in industrial environment, ponding water, heavy traffic
| Product | Consumption | Dry film | |||
| 1st layer | RD-Elastometal | 0,40 kg/m² 130 s/f-g | 175 µ 7 mils | ||
| 2nd layer | RD-Edeck Slurry | 2,40 kg/m² 29 s/f-g | 900 µ 36 mils | ||
| 3rd layer | RD-Hydrograff HP Glossy | 0,10 l/m² 390 s/f-g | 50 µ 2 mils | ||
4/ New plates or smooth surfaces located in industrial environment and/or with high traffic - ferrous and non ferrous metal
| Product | Consumption | Dry film | |||
| 1st layer | RD-Monoguard | 0,20 l/m² 200 s/f-g | 80 µ 3.2 mils | ||
| 2nd layer | RD-Hydrograff HP Glossy | 0,10 l/m² 390 s/f-g | 50 µ 2 mils | ||
5/ New plates or smooth surfaces with low to medium traffic & non agressive environment - ferrous and non ferrous metal
| Product | Consumption | Dry film | |||
| 1st layer | RD-Monoguard | 0,20 l/m² 200 s/f-g | 80 µ 3.2 mils | ||
| 2nd layer | RD-Monofloor PU | 0,20 l/m² 290 s/f-g | 60 µ 2.4 mils | ||
| 3rd layer | RD-Monofloor PU | 0,20 l/m² 290 s/f-g | 60 µ 2.4 mils | ||
Application conditions and work preparation
Environmental conditions (general requirements):
• Minimum air and substrate temperatures: 10°C / 50°F for 24 hours.
• Maximum surface temperature: 55°C / 130°F.
• Maximum relative humidity: 90%.
• Surface temperature must be at least 3°C / 5°F above dew point.
• No threat of rain for 6 hours.
/!\ Notes
• There must be no condensation on the surface during application and drying. Caution when working at the beginning or end of the season!
• Overnight drying between coats is generally recommended. However, drying rates for water-based coatings depend on temperature, humidity and wind.
• From 15°C / 59°F, working conditions are comfortable and enable higher productivity.
• If the project is located in a very hot area with very intense sunshine during the day, avoid applying the system when the sun is most intense on the surface, and prefer to work early in the morning, late in the afternoon or in the shade.
Surface preparation
The surface must always be clean, dry, free of grease and contaminants. Rust or loose paint must be removed.
Accepted methods and standards:
• Manual or mechanical derusting ST2 - ISO 8501-1 / SSPC SP2 or SP3.
• High-pressure cleaner with rotating nozzle angle of 0°, minimum 300 bar / 4400 psi or more, depending on the condition and degree of soiling.
Paint that has resisted to the cleaning process can remain in place. Depending on the nature of the project or the specific area to be treated, a combination of these methods is possible.
Hand cleaning or using an electric tool is also an option and is recommended when a more detailed surface preparation is required for objects located on or near the platform, such as access ladders and bolts/fasteners that may be heavily rusted.
Moss and mildew should be removed down to the roots using appropriate cleaners.
Direct environment
Observe the presence of any chimneys or ventilation units that may expel contaminants onto the surface to be treated. Neutralize their effects during work.
RD-Eco Powerclean
Use RD-Eco Powerclean just before application to ensure that the surface is clean and degreased. Particularly in the presence of stubborn dirt, oil, grease or pollution on the surface, or where there is a long lap of time between surface preparation and the start of the application.
Inspection of bolts/fasteners
Inspect the condition of the bolts securing the metal sheets to each other and to the wall structure. Defective bolts and fasteners must be repaired or replaced.
Edges and corners
Check edges and corners. These are the areas most prone to corrosion. In case of corrosion or bare metal, apply RD-Elastometal with a brush.
Application material
RD-Eco Powerclean
Low-pressure sprayer.
RD-Elastometal
Brush or roller
Airless device: minimum pressure 180 bars / 2600 psi. Nozzle opening: 0.015 - 0.023 in.
RD-Monoguard
Brush, roller or airless.
Airless: opening of nozzle 010 to 012 – pressure 70 to 150 bars / 1000 to 2200 psi.
Airless application is recommended and makes it easier to achieve the recommended thicknesses.
RD-Monofloor PU
Brush, roller or airless (nozzle size: 015–021)
RD-Edeck Slurry
Brush, roller, notch squeegee, or metal trowel.
RD-Edeck Slurry can also be spray-applied using the Graco TexSpray T-max 6912 (large jobs),TexSpray RTX 5000PI (medium jobs) or TexSpray FastFinish (small jobs).
RD-Hydrograff HP
Brush or roller
Airless: pressure +/- 70 bars / 1000 psi. Nozzle opening: 0.007 - 0.009 in.
Tool cleaning
Clean with clean water only.
Product application
RD-Eco Powerclean
Dilute between 5 and 20% in water, depending on degree of soiling. Spray on and leave for 15 minutes. Then rinse with a high-pressure cleaner.
RD-Elastometal
Ready-to-use product. Stir mechanically a few minutes before application. Do not dilute.
Drying time: (20°C - 68°F)
Touch-dry: +/- 3 hours
Recoatable: +/- 6 hours
RD-Monoguard
Ready-to-use product. Stir mechanically a few minutes before application. Do not dilute.
Drying time: (20°C – 68°F)
Dry to the touch: +/- 1 hour
Recoverable: +/- 2 hours
RD-Monofloor PU
Ready-to-use product. Stir mechanically a few minutes before application. Do not dilute.
Drying time: (20°C - 68°F)
Touch dry: +/- 2 hours
Recoatable: +/- 4 hours
RD-Edeck Slurry
Ready-to-use product. Stir mechanically a few minutes before application. Do not dilute.
Drying time :
Touch dry: +/- 3-4 hours
Recoatable:
+/- 18 hours at 15°C – 60°F
+/- 12 hours at 26°C – 80°F
+/- 4 hours at 35°C – 90°F
RD-Hydrograff HP
Two-component product: just before application, add slowly component B to component A while mixing mechanically.
After mixing, allow to stand for approx. 5-10 minutes, until air bubbles disappear.
| Mixing ratio | Color version | Clear | ||||
| Weight | B : 270gr / A : 995gr | B : 170gr / A : 850gr | ||||
| Volume | 3,5:1 | 5,5:1 | ||||
Pot-life: 2 hours at 20°C / 68°F
Drying time: (20°C - 68°F)
Touch-dry: 6 h
Recoatable: min. 8 h, max. 72 h, without sanding
Mechanical resistance: 3 days
Chemical resistance: 7 days
Tip !
Applying a coat of RD-Metal Unicoat or RD-Elastometal over each fastener after inspection will not only help visualize the progress of the inspection, but also add a first protective layer over these weak spots. This step is recommended in harsh environments or on heavily rusted surfaces.
Pictures

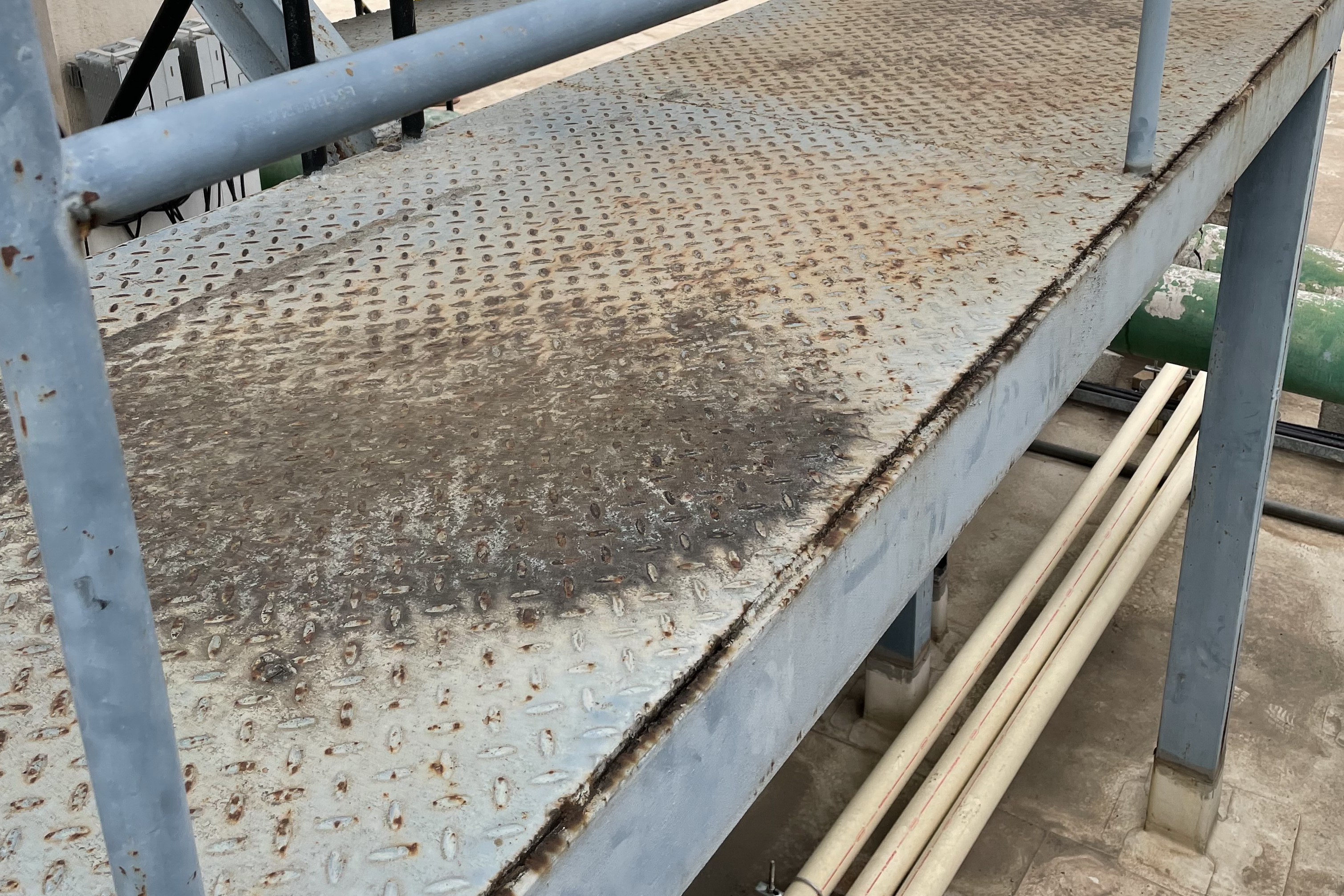

1/ Preparation
2/ Application

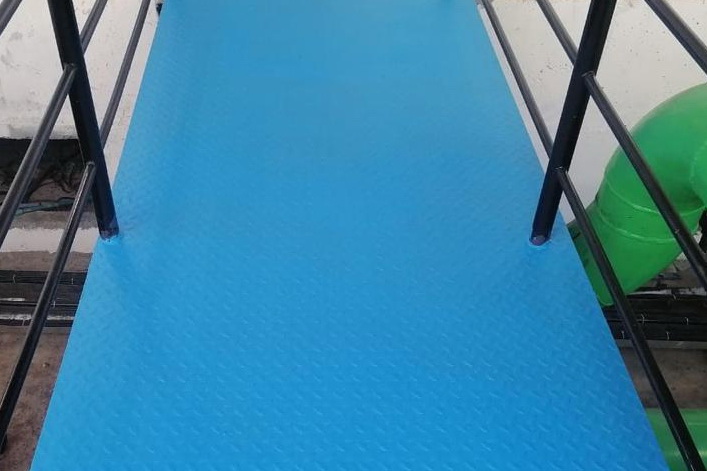

3/ Result
